0AL4103 Alpha 400 PUREX 120v

Purex Alpha 400:

Export Notes:

HTS code: 8421.39.0115

Made in the UK-England

ECCN (Export Control Classification Number): EAR99

Freight Class: 85, NMFC# 069100-03

** SHIPPING NOTE: This extractor System MUST be shipped via LTL Freight on a pallet. When purchasing, please let us know if a lift gate is required. Additional charges may be incurred

For Laser Applications with 4" Port
Main Filter: HEPA/Twin Chemical 113579
Pre-Filter: F8/F9 202274
Connection Type: 120288 for 4" Port

Optional: 113579, 113668, 113512, 113669, 113508, 113809, 113513,113505H, 113505P,113662, 113531.

Standard pre-filter: 111085

Optional pre-filter 111095

Presentation:

120v ( 0AL4103 )

230v ( 0AL4102).

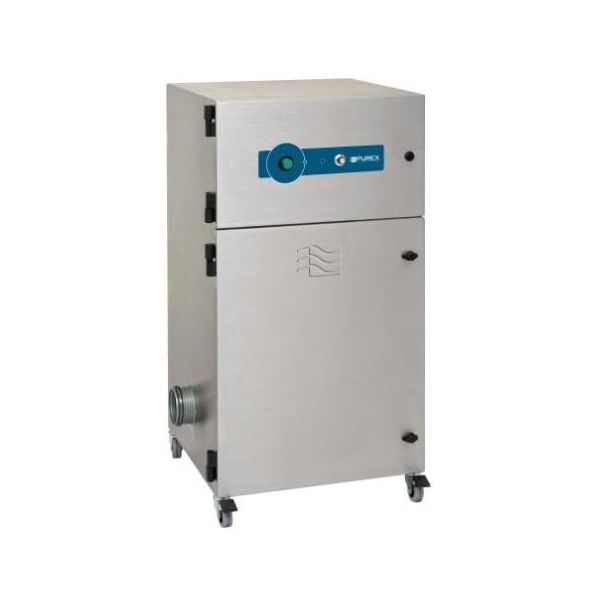

Purex, Alpha 400 120v
The Alpha  400 (0AL4103) extracts and filters hazardous laser fumes.

• These cost-effective units extract LGACs (Laser Generated Airborne Contaminants) from the laser process then filter out hazardous particles and gas using a 3-stage process before returning clean air to the workplace. The Laserex Alpha includes many unique and patented features and has a minimal footprint which is useful where space is limited.
• Automatic electronic flow control – maintains a constant extraction rate even as the filter blocks
• Speed control (adjustable airflow)
• VariColour filter blocked warning system
• Low capital and running costs
• Quick change patented Labyrinth pre-filter delivers longer filter life
• Submicronic (HEPA Filter) filtration removes 99.997% of particles down to 0.3 microns
• Activated Carbon Filters removes harmful gas
• Simple to install and quiet in operation
• Easy to relocate and precision made from stainless steel
