890180 Purex Cascade In Line (Dom. L014945)

Includes either MPEF-111107 Needlefelt Cascade Reusable or MPEF-111117 Labyrinth F8/F9 (One Time use)

Brochure MPEA-890180

** SHIPPING NOTE: This extractor System MUST be shipped via LTL Freight on a pallet. When purchasing, please let us know if a lift gate is required. Additional charges may be incurred

Cascade, In-Line Filter for 400i/800i
Note: Vacuum or Volume, The Cascade Box is fitted with a silicone vacuum sensing tube. The tube should be connected to the inlet on all vacuum machines. It should not be connected to volume machines.

Length: 430mm, Width: 430mm, Height: 1063mm, Weight: 30 kg

Purex Cascade inline filters have been designed for applications that produce a large volume of particulates which would quickly block other filters.

Cascade particle filter

For example, continuous engraving of rubber, wood, and some plastics can rapidly clog normal extractor filters leading to excessive replacement costs. Recognizing the problem of consumable filter costs, Purex International has designed the 'Cascade', a unique multi-pocket filter with an innovative concentric cone design.

The Cascade sits in its cabinet and is in the first filtration stage. Large particles and other containments are captured by the Cascade, and the air (free of large particles) is then routed to the Purex fume extractor where the Labyrinth pre-filter and main Hepa/Chemical filters clean the air of remaining particles and harmful gasses.

With the large particles removed by the Cascade, the Labyrinth and Main filters' filter life is greatly extended. The Cascade dramatically reduces the lifetime costs of consumable filters.

The Cascade features a special media surface that allows particles to collect without sticking. When the Cascade appears to be blocked, as evidenced by an alarm, the operator simply shakes the Cascade to dislodge any particle build and the filter can be used again.

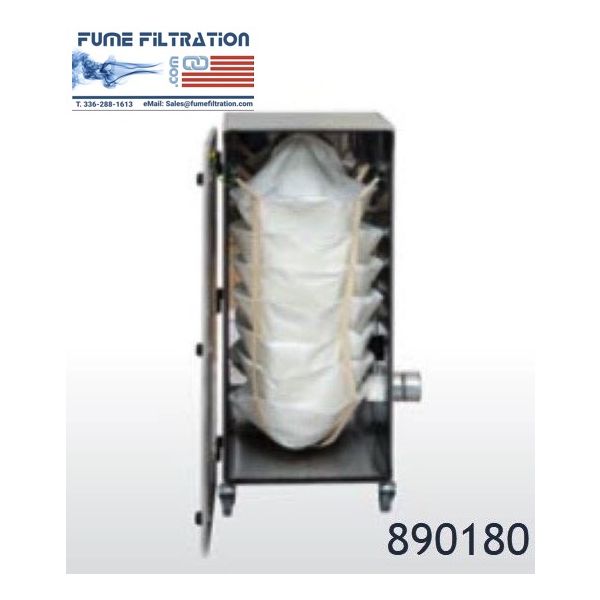

Purex Cascade Filter

When the Cascade is finally full the operator can quickly and easily remove, empty and re-use the filter many times over

The Cascade Inline Unit acts as an additional pre-filter in applications where large amounts of particles are produced.

Note: Vacuum or Volume The Cascade Box is fitted with a silicone vacuum sensing tube. The tube should be connected to the inlet on all vacuum machines e.g. Xbase, Alpha and Digital Tip and Arm Applications. It should not be connected to volume machines.
