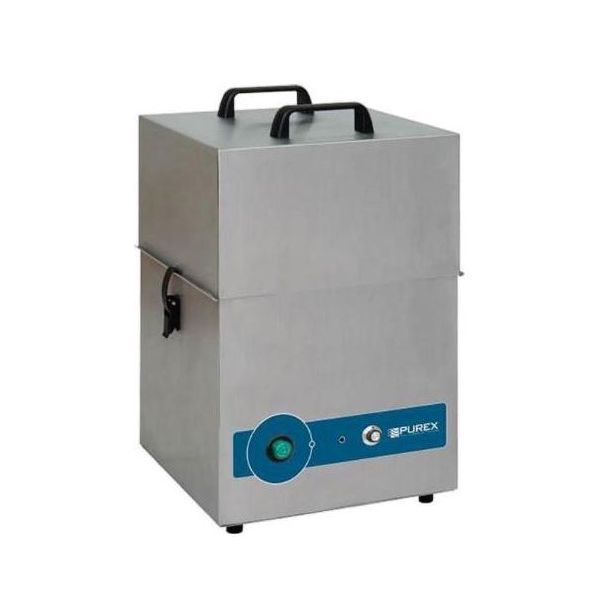

072116-3 Purex FumeCube Max,120V.

MPE-072116-2. FumeCube Max with Hose Kit (Before 072152)

Purex, FumeCube Max Basic 120V, +Hose kit

Includes: Pre-Filter F8/F9 Composite 111124, Main Filter Type (SELECT): HEPA/Chemical (std) 110507 or Chemical 110504, Optional: Hose Kit 1, 2, 3

FumeCube Max brochure

 *Note: 230 VAC units (MPE-072115) take 4 to 6 weeks when they are not in stock. Please request a quote and ask for the delivery time.

Export Notes:  HTS Code #:  8421.39.8015, Made in the UK-England
Freight Class: 125, NMFC# 069100-03

(MPEF-072115 FumeCube Max 230V) .

Features and Benefits
Visual and audible filter block warning alerts the operator when a filter starts to block, and the filter should be changed. This would avoid any downtime
Varicolor filter blocked the warning system
LED filter status: Green indicates the filter is safe for use, yellow indicates when the filter is nearly full and Red highlights when the filter needs replacing.
Automatic electronic flow control – maintains a constant extraction rate even as the filter blocks
Adjustable airflow
Operates worldwide with no loss of performance
Low capital and running costs
Submicronic (HEPA) filtration removes 99.997% of particles down to 0.3 microns
Activated carbon filtration removes harmful gas
Simple to install and quiet in operation
Easy to relocate
Precision made from Stainless steel
Remote interface capability
Widely used in laser and electronics industries.

Specifications:
Cabinet Height: 493 mm
Cabinet Width: 308 mm
Cabinet Depth: 330 mm
Cabinet Weight: 14 kg
230v – Wattage: 0.14 kW
Multivoltage – Wattage: 0.21 kW
Frequency: 50 Hz/60 Hz
